10*50inch 3HP R8 Spindle Manual Vertical Turret Milling Machine

Brand Name : JOINT

Model Number : 3E

Certification : ISO 9001:2015

Place of Origin : CHINA

MOQ : 1 SET

Price : Usd2600.00-Usd6000.00/set

Payment Terms : TT/LC/DA/DP

Supply Ability : 1000 SETS/YEAR

Delivery Time : 10-30 work day

Packaging Details : WOODEN PALLTES / WOODEN CASE

X/Y/Z axes travel : 880/395/360mm

Travel of spindle quill : 127mm

Max distance from the spindle nose to table : 400mm

spindle rotation speed (step speed milling head) : 66-4540rpm(50HZ)

Tilt angle (Forward and Backward) : ±45°

Tilt angle (left and right) : ±90°

Type : Vertical

Voltage : 220V/415V/380V

Condition : New

Weight : 1200kgs

Dimension(l*w*h) : 1750*1500*2150mm

Cnc or not : Manual

Warranty : One year /Two Year /Three year

After-sales service provided : Optional

Power(w) : 2.2kw

Color : Customized

Spindle taper : NT30/R8

Contact Now



10*50inch Travel 3HP R8 Spindle Manual Vertical Turret Milling Machine



10*50inch 3HP R8 Spindle Manual Vertical Turret Milling Machine


Feature


3E Spindle tolerance is 0.005mm.

Its milling head adopts 3HP motor, 16 steps speed pulley head, variable speed head is optional.


This type of model is taiwan parts assembled in China.


The treble swallowtail guide way is adopted on three axis, so it is easy to adjust and repair.

It is suitable for household appliances, daily necessities mold processing.



10*50inch 3HP R8 Spindle Manual Vertical Turret Milling Machine



Specification


Model 3E
Table size 1270*254*90mm
X axis travel 880mm
Y axis travel 395mm
Z axis travel 360mm
Travel of spindle quill 127mm
Max distance from the spindle nose to table 400mm
Spindle rotation speed 80-5440/(16Grades)/60HZ 66-4530/(16 Grades)/50HZ
Spindle Taper NT30/R8
Spindle Rated power                                       3HP
Tilt angle Forward and backward ±45°(±0° optional)
Tilt angel left and right ±90°
Dimension 1500*1700*2150mm
Net weight



1200kgs

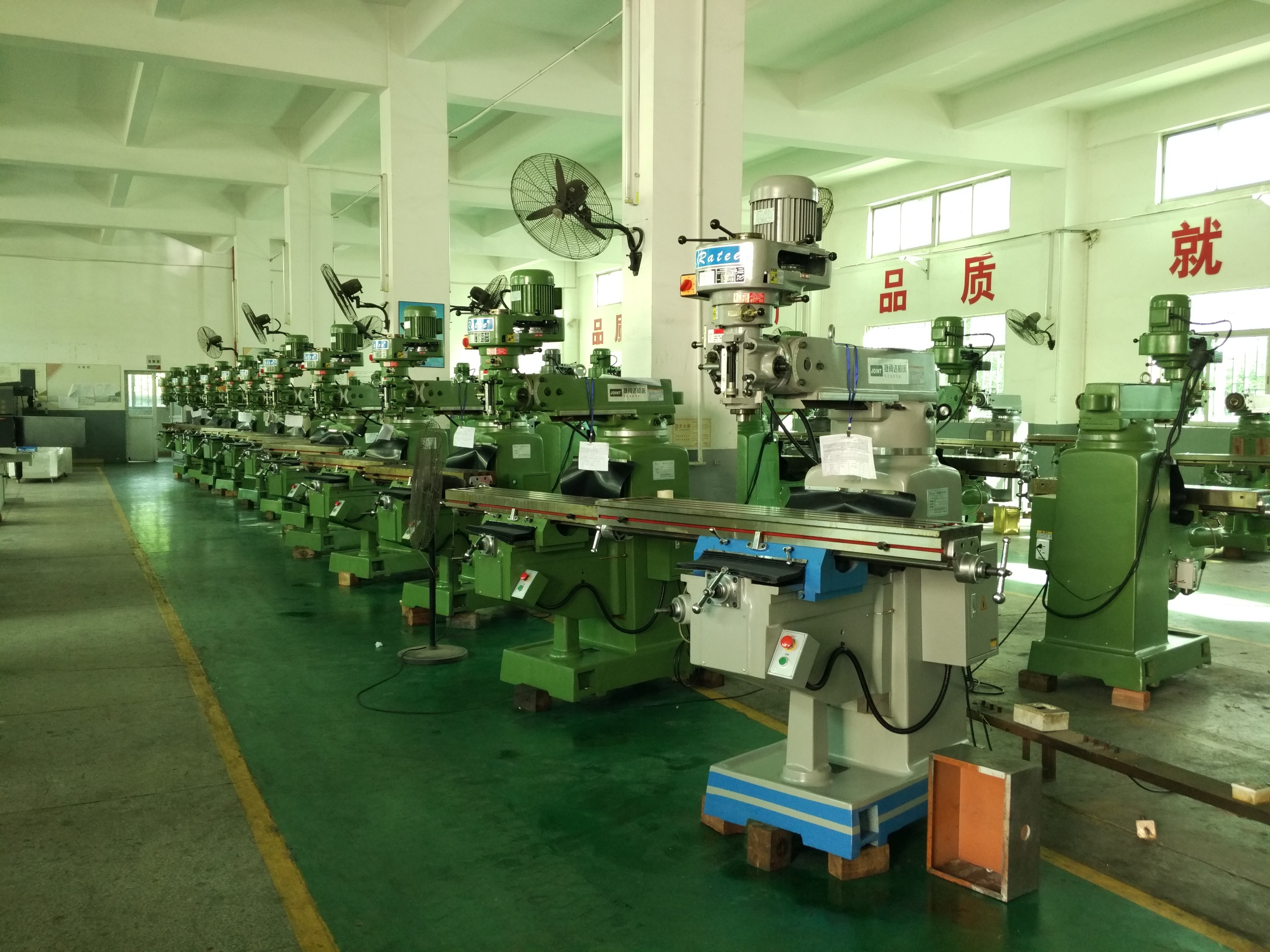

Machine Picture

10*50inch 3HP R8 Spindle Manual Vertical Turret Milling Machine



10*50inch 3HP R8 Spindle Manual Vertical Turret Milling Machine



Standare Accessories



Way cover , Tool and tool box ,draw bar ,manual pump ,Working light

10*50inch 3HP R8 Spindle Manual Vertical Turret Milling Machine

10*50inch 3HP R8 Spindle Manual Vertical Turret Milling Machine



Optional Accessories



Three axis DRO , Two axis DRO, Clamping kit , NT30/NT40 Milling chuck , X axis power feed ,Coolant system



6 Vise ,8 Vise , Power bar , Z axis Elevator motor





10*50inch 3HP R8 Spindle Manual Vertical Turret Milling Machine



Optional For Milling Head



10*50inch 3HP R8 Spindle Manual Vertical Turret Milling Machine

Square type step Speed        Variable Speed Milling head  Inverter Speed Milling Head   Step Speed Milling Head

       Milling head

10*50inch 3HP R8 Spindle Manual Vertical Turret Milling Machine



Why Choice JOINT machine ?



A:Chinese TOP 10 Brand of milling machine



B: 26 Years professional Machinery manufacturer



C. China HI-TECH Enterprise



D.SHENZHEN TOP Brand

10*50inch 3HP R8 Spindle Manual Vertical Turret Milling Machine
