Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225

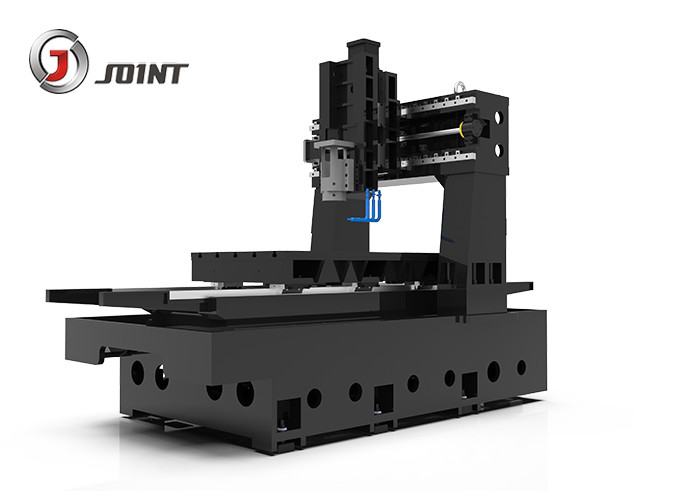

1. Gantry machine center applies fixed beam type double vertical shafts gantry framework structure with
cross layout, stable and reliable machine tool.
2. Grantry machining center is mainly used in large size parts, sheet machining ,disc piece ,housing piece,
mold ect. With high accuracy, multi-process, complex shapes. Within one-shot clamping, it can continuously complete milling, drilling, flaring,reaming, boring, tapping, 2D and 3D curve and bevel precision machining.
3. Bed, worktable, vertical shaft, beam, axis ect apply high strength cast iron material. Model is of resin
sand technology. Stress is removed by secondary time effect treatment.
| Model | BTMC-1225 |
| Table size | 900*2500mm |
| X aixs travel | 2500mm |
| Y axis travel | 1200mm |
| Z axis travel | 800mm |
| Gantry width | 1220mm |
| Distance between spindle and table | 120-920mm |
| Spindle rotation speed | 6000rpm (BT40-10000/12000/15000Rpm optional) |
| Spindle taper | BT50 (BT40 Direct connection spindle ) |
| Spindle Motor | 15-18.5kw |
| Work table Tslot | 7-22*125mm |
| X axis rapid feed | 12m/min |
| Y axis rapid feed | 12m/min |
| Z axis rapid feed | 8m/min |
| Cutting feed | 8m/min |
| Positioning accuracy | 0.01mm/m |
| Min.set moving unit | 0.001mm |
| Net weight | 15000kgs |
| Max load of table | 3000kgs |
| Dimension | 8570*3210*3920mm |
1. FANUC System
2. Heat exchaner in electric control cabinet
3. Water tank cooling device
4. Manual pulse generator
5. Automatic lubrication device
6. Workong lamp
7. Outer protective cover
8. Three-color warning lamp
9. Spindle blowing device
10. RS-232 standard output interface
11. Handle air gun
12. LCD
13. Water gun
14. Tool and tool box
15. Electric control cabinet
16. Operation manual
17. Transformer
1. Mitsubishi system
2. ATC (Manipulator)
3. Spindle oil cooling device
4. Water through spindle center device
5. Disk type oil-water separator
6. CNC rotation worktable (the 4th axis)
7. Air conditioner in electric control cabinet
8. fully-enclosed optical scale detecting system
9. Automatic tool length measuting system
10. Manual / Semi*autoatic right-angle head
12. ZF gear box
