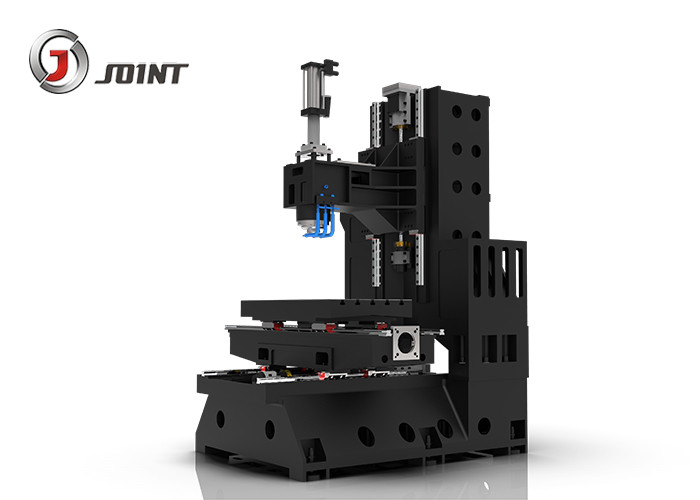

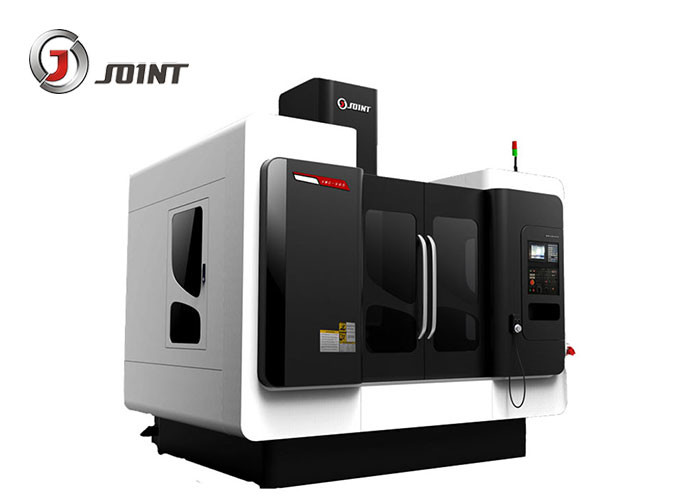

High quality Fanuc vertical machine center V85P
1. Adopt FFA software to analyze ,vibration detector to replicate and optimize the structure.
2.Super wide base ,X axis width up to 1.25m ,it is 0.39m wider than V85 ,widen base will
increase the stability and dynamic responsiveness of the machine.
3. 3 axis high rigidity roller linear guide way ,X/Y axis 35mm width ,Z axis 45mm width,
increase the cutting rigidity.
4.Without heavy hammer design ,increase Z axis power ,increase the responsiveness
and procision of Z axis.
5.Spindle box reinforced design ,decrease spindle high speed running deformation ,
increase the heavy cutting performance.
| Model | V85P |
| Table size | 1000*550mm |
| X axis Travel | 800mm |
| Y aixs Travel | 500mm |
| Z axis Travel | 500mm |
| Distance between spindle and table | 160-660mm |
| Distance between spindle and column | 524mm |
| Spindle rotation speed | 10000 /Direct connection 12000/15000rpm |
| Spindle motor | 7.5kw |
| Work table T slot | 5-18*100 |
| X/Y/Z axis ball screw size | 3616 |
| ATC type | 24too arm type |
| Time of changing tool | 2.5m/min |
| Rapid feed | 48*48*48m/min |
| X/Y/Z axis motor | 12/12/20NM |
| Max cutting feed | 10m/min |
| Min set moving unit | 0.001mm |
| Dimension | 2650*2900*2850mm |
| Net weight | 5000kgs |
| Max load of table | 600kgs |
Standard Accessories
Fanuc Controller system

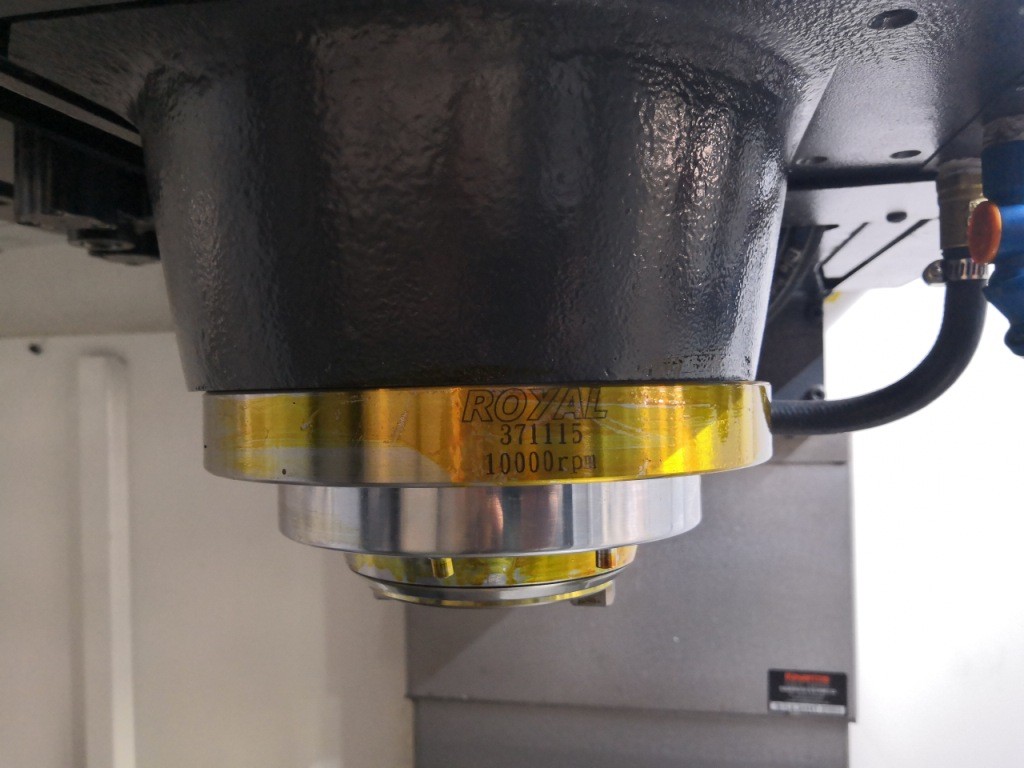

10000/12000/15000Rpm spindle
24tools arm type tool magazine
Spindle oil cooler

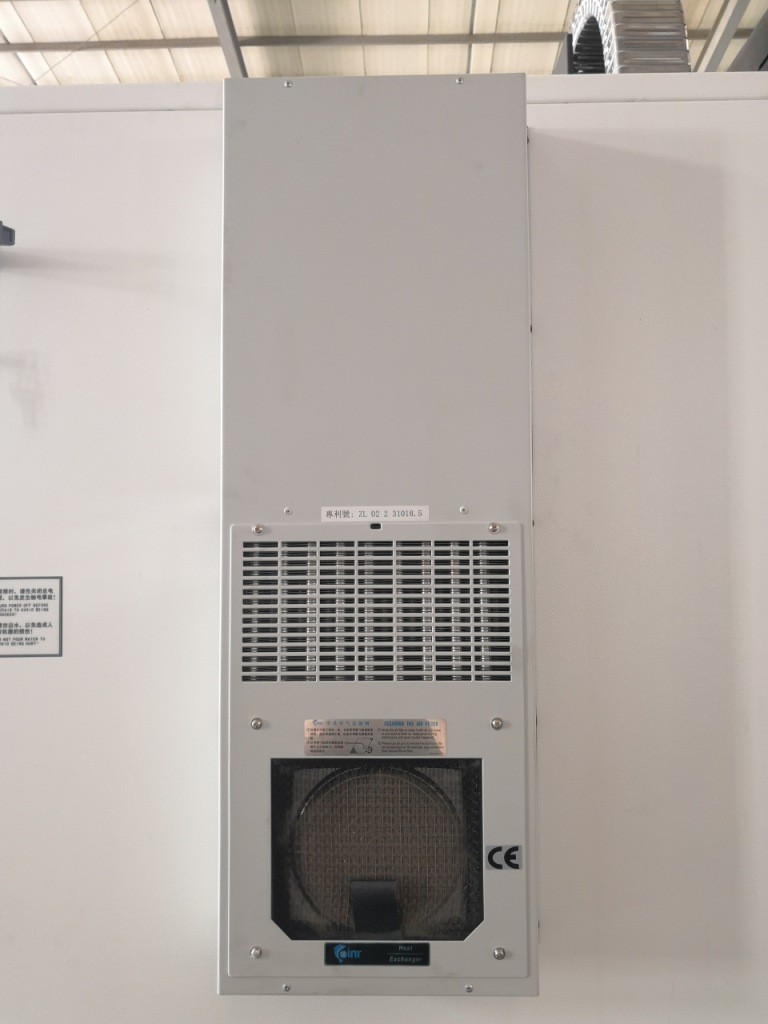

Heat exchanger
Full enclosed cover
Spindle encoder position system
Three axis inner encoder feedback system

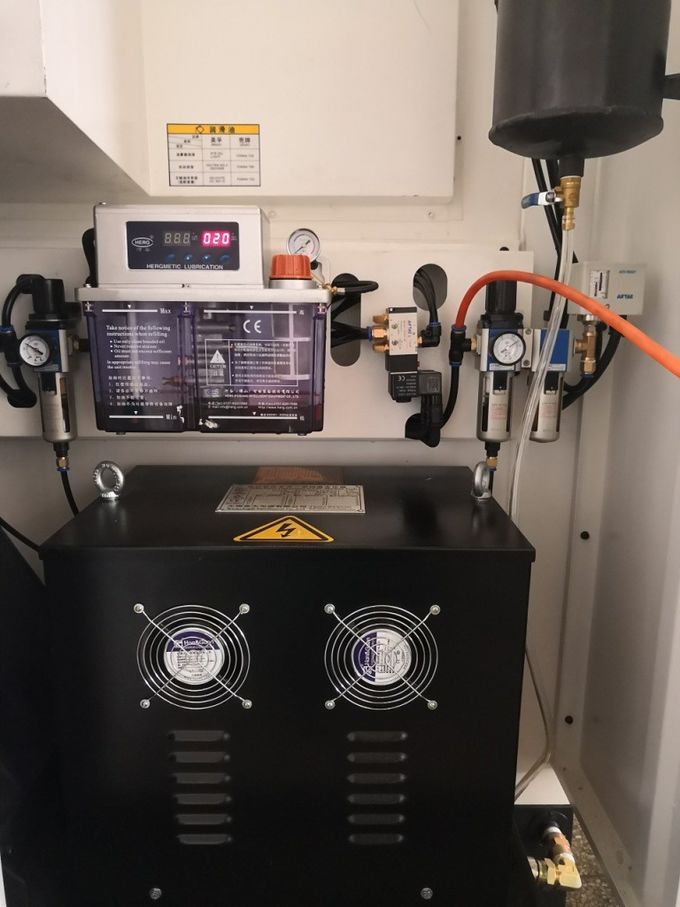

Auto lubrication system
Pneumatic system
RS 232 Interface
Operation unit
RS232 Interface +working light
Tool and tool box
