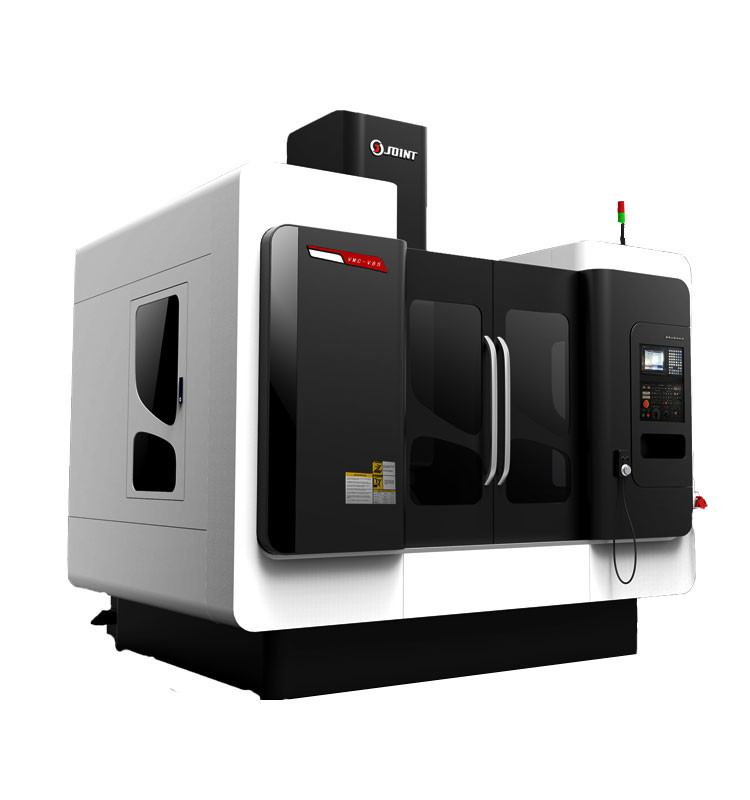

7.5kw BT40 Vertical CNC Machine Processing Parts Mold

High speed CNC machine center for parts and mold metal cutting

1. Roundness, squareness and dimensional deviation of V85P, are 25% higher than V85.

2. V85P machine over-cutting is less than 0.15mm in High feed (F8000) Cutting. Most of the current machine

    tool in this feed cutting are 0.2mm, processing efficiency than V85 improved by nearly 10%.

3. The tapping efficiency is the same as V85 Machine, but V85P has smaller tapping error.

4. V85P Machine’s 3D curved surface precision, V85P processing efficiency is more 30% higher than V85 at

    same processing precision requirement.

5. The effect of V85P on the composite curved surface is obviously better than that of V85 and VMC850,

    processing tool marks, quadrant points, and gear marks are all within 0.005mm.The s-grain and broach

    phenomenon are basically cleared.

6. Heavy cutting capacity of V85P is much stronger than V85, The cutting depth of V85P is 0.5mm deeper

    than V85’S for using diameter 63mm cutter with Max cutting depth same configure.

1. Fanuc Controller system                  2. 10000/12000/15000Rpm spindle

3. 24T arm type tool magazine            3. Spindle oil cooler

4. Heat exchanger                               5. Full enclosed cover

6. Spindle encoder position system     7. Three axis inner encoder feedback system

8. Auto lubrication system                    9. Pneumatic system

10. RS 232 Interface                            11.Operation unit

12. RS232 Interface                             13. Working light

14. Tool and tool box

1. Screw type chip conveyor

2. Chain type chip conveyor
